Globar IR Light Source

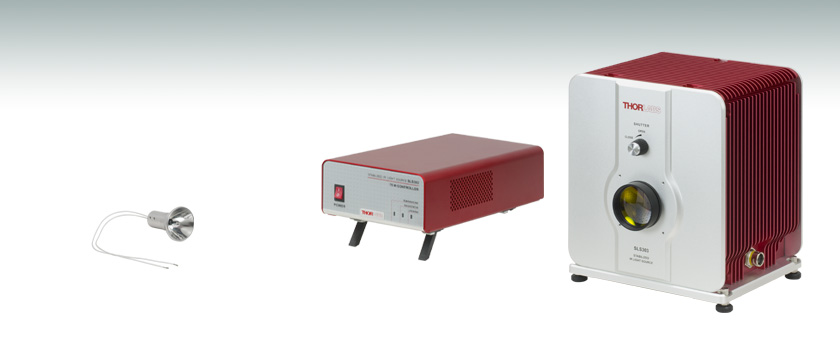

![](https://www.thorlabs.us/Images/GuideImages/13022_BenchtopGlobar_1.jpg)
- >4.5 W Power Light Source with 550 nm - 15 µm Output
- Stabilized Color Temperature and Output Power
- Long Emitter Lifespan: 5000 Hours (Average)
Controller Included
SLS303
Stabilized Globar Light Source,
550 nm - 15 µm, 4.5 W Output
SLS303B
Replacement Globar
![](../../images/loading-red.gif)
Please Wait
Key Specificationsa | |
---|---|
Item # | SLS303 |
Emitter Type | Stabilized Silicon Nitride Globar |
Wavelength Range | 550 nm - 15 µm |
Color Temperature | 1200 K |
Output Optical Power | 4.5 W |
Output Beam Diameter | 50 mm |
Output Power Stabilityb | 0.05% |
Optical Drift per Hour (Typical) | 0.01% |
Optical Power Drift per °C (Typical) | 0.2% |
Emitter Electrical Power | 70 W |
Emitter Lifespan (Average) | 5000 Hoursc |

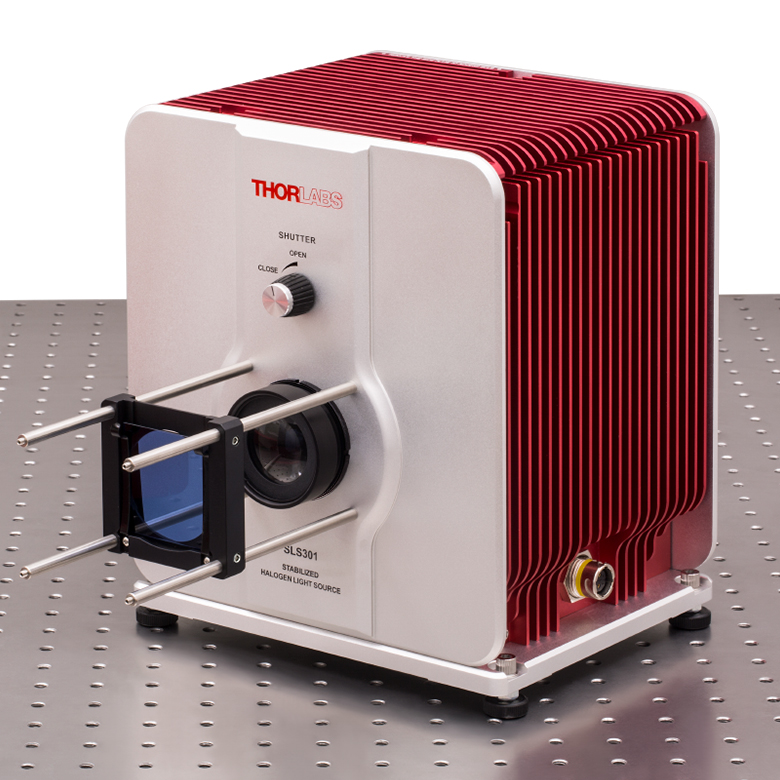

![Filter Holder Attached to Benchtop Light Source](https://www.thorlabs.us/images/TabImages/Stabilized_HP_Lamp_LCP05A_A1–200.jpg)
Click to Enlarge
Benchtop Light Source with
60 mm Cage System and
LCP05A(/M) Filter Mount with
Color-Balancing Filter
Features
- Silicon Nitride Globar with 550 nm - 15 µm Output
- Collimated Output for Free-Space Applications
- Internally SM2-Threaded Aperture
- Four 4-40 Threaded Holes for 60 mm Cage System at Front Output
Thorlabs' SLS303 Silicon Nitride Globar Light Source provides stable, high-power IR and MIR illumination. This source features an internal feedback system to provide highly stable output power (0.05% fluctuation). Since the blackbody spectrum of this source a wide spectral range, this source is ideal for integration into optical measurement equipment, such as back illumination for a test target as part of a detector calibration system.
![](https://www.thorlabs.us/images/tabimages/Stabilized_HP_Lamp_A4-200.jpg)
Click to Enlarge
Collimated Output
Each SLS303 source includes a lens to collimate the high-power, broadband output into a Ø50 mm beam for free-space applications. For convenience, the position of the collimation lens is factory set; however, it is also user-adjustable should slight tweaks to the collimation be necessary. For additional mechanical stability, the feet are removable, allowing the source to be bolted directly to any standard imperial or metric optical table with user supplied 1/4"-20 or M6 screws, respectively. The front face features four 4-40 taps (as shown in the image above) for 60 mm cage rods, making this device compatible with Thorlabs' 60 mm cage system. Using the cage system, it is possible to incorporate various optic mounts that are centered along the optical center of the collimated beam.
A replacement Globar is available below. Please see the Globar Replacement tab for detailed instructions.
If a higher color temperature is desired, our color-balancing filters can be used to attenuate red light from a light source while passing blue light. This results in a beam with a higher color temperature and lower total power.
Item # | SLS303 |
---|---|
Emitter Type | Silicon Nitride Globar |
Wavelength Range | 550 nm - 15 µm |
Color Temperature | 1200 K |
Output Optical Power | 4.5 W |
Typical Spectral Output | 0.1 W (400 - 700 nm) 4.4 W (700 - 15 000 nm) |
Optical Power Stabilitya | 0.05% |
Optical Drift per Hour (Typical) | 0.01% |
Optical Power Drift per °C (Typical) | 0.2% |
Output Beam Diameter | 50 mm |
Emitter Electrical Power | 70 W |
Lamp Housing Dimensions (L x W x H) |
213.7 mm x 217.0 mm x 261.2 mm (8.41" x 8.54" x 10.28") |
Controller Dimensions (L x W xH) |
299.9 mm x 149.8 mm x 80.2 mm (11.81" x 5.90" x 3.16") |
Emitter Lifespan (Average) | 5000 Hoursb |
Operating Temperature | 0 °C to 35 °C |
Storage Temperature | -15 °C to 70 °C |
SLS303B Globar Specifications | |
---|---|
Wavelength Range | 550 nm - 15 µm |
Emitter Type | Silicon Nitride Globar |
Color Temperature | 1200 K |
Globar Electrical Power | 70 W |
Emitter Dimensions (Typical) | Ø4.5 mm x 17 mm |
Lifespan (Average) | 5000 Hours |
Operating Voltage | 12 V |
![Stabilized Light Source Stability](https://www.thorlabs.us/images/TabImages/SLS303_Stability_450.gif)
Click to Enlarge
The power output and temperature of an SLS303 light source were measured over 55 hours of continuous operation. The source was run for 60 minutes to warm up and stabilize before this data was taken. The temperature was held at 25 ± 2 °C.
![Stabilized Quartz-Tungsten-Halogen Light Source](https://www.thorlabs.us/images/tabimages/SLS303_Spectrum_450.gif)
Click to Enlarge
Click for Raw Data
The measured spectral power distribution for the SLS303 light source compared to a 1200 K black body. The measured data does not extend beyond 5.6 µm due to spectrometer limitations.
Globar Handling
The Globar emitter used in the SLS303 light source operates at a very high temperature. If handled incorrectly, it will become a serious hazard to users and could potentially cause severe injury. It is critical to follow safety instructions when handling it.
The guidelines below describe safe Globar emitter handling.
- Never bump, drop, apply excessive stress, or scratch the emitter.
- Always transport the emitter in the provided protective case or cover until installation.
- Save the protective case or cover and packaging materials (box) for emitters that have been used to their rated service life.
- Clean any dirt, oil, or lint away from the emitter with alcohol and a lint free cloth or tissue.
- Always wear gloves when handling the lamp; never hold the lamp by its envelope. Thorlabs offer gloves that can be used for lamp handling.
- The emitter generates very high-intensity light output; never stare directly into the lamp.
- The emitter gets very hot during operation. Always wait at least 30 minutes after operation for the lamp to cool down before handling.
- Electrostatic discharge (ESD) protection is recommended when handling the emitter.
Globar Replacement
The installation instructions and videos below detail the recommended procedure for replacing the Globar emitter in our SLS303 Globar Light Source. Do not attempt to change the emitter while the emitter or lamp housing are hot. Allow at least 30 minutes after turning the light source off before attempting to replace the emitter.
We strongly recommend wearing gloves when replacing the emitter to prevent skin oils from being deposited onto the lamp. If you suspect the emitter is dirty, carefully clean it with alcohol before connecting it to a power supply.
Please note that the Globar modules should only be handled with protective gloves.
Open the Lamp Housing
- Using a 4 mm hex key, remove the screws on the side plate. An engraving on the top of the unit indicates which side plate to remove.
Remove the Old Globar Module
- Undo the orange clips holding the Globar wires in place.
- Using a 2 mm hex key, loosen the setscrew on top of the Globar module and remove the screw on the side by turning them counterclockwise.
- Remove the old module from the socket.
Install the New Module
- Route the yellow wires and insert the new module into the socket.
- Insert the wires into their sockets and engage the orange clips.
- Insert the side screw and then retighten the top setscrew to secure the module.
- Replace the side panel and secure with the four M5 cap screws.
SLS303 Connectors
![Connector Diagram](https://www.thorlabs.us/images/TabImages/10-Pin_SLS301_Connector_D1-200.gif)
10-Pin Female Connector | |||
---|---|---|---|
Pin | Connection | Pin | Connection |
1 | Bulb Ground | 6 | Ground |
2 | Bulb +12 V | 7 | Ground |
3 | Ground | 8 | +12 V |
4 | Monitor PD Signal | 9 | Signal Ground |
5 | Signal Ground | 10 | Ground |
Analog Output, 0 to 5 V
