Ø1/2" Adapters for Unmounted Square Optics


  • Mounting Solution for 2.0 mm, 3.0 mm, 4.0 mm, and 4.5 mm Square Optics
  • Adapts Optics to Ø1/2" for use in Round Optic Mounts
  • Flexure Retention System Minimizes Strain on the Optic
  • Non-Metallic Construction For Use in High-Strength Magnetic Fields

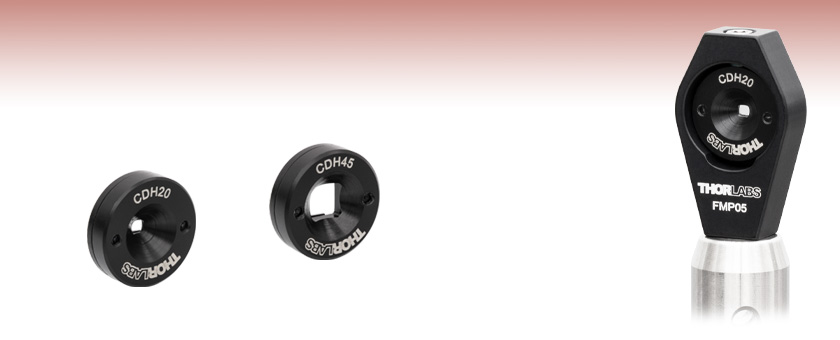

CDH20

Adapts 2.0 mm x 2.0 mm Square Optics to Ø1/2" Mounts

CDH45

Adapts 4.5 mm x 4.5 mm Square Optics to Ø1/2" Mounts

Application Idea

An ELSC20 2.0 mm square electronic-grade single-crystal diamond is mounted in an FMP05 Ø1/2" optics mount using a CDH20 square optics holder.

Related Items


Please Wait
Specifications
Item # CDH20 CDH30 CDH40 CDH45
Nominal Optic Size 2.0 mm (0.08")
Square
3.0 mm (0.12")
Square
4.0 mm (0.16")
Square
4.5 mm (0.18")
Square
Max Optic Size 2.3 mm (0.09")
Square
3.3 mm (0.13")
Square
4.3 mm (0.17")
Square
4.8 mm (0.19")
Square
Min Optic Thickness 0.45 mm (0.018")
Max Optic Thickness 0.55 mm (0.022")
Clear Aperturea 1.5 mm (0.06")
Square
2.5 mm (0.10")
Square
3.5 mm (0.14")
Square
 4.0 mm (0.16")
Square
Outer Diameter Ø12.7 mm (Ø0.50")
Thickness 3.6 mm (0.14")
Body Material Delrin®*
Screw Material Nylon
  • The corners of the aperture have a 0.3 mm (0.01") typical radius.
Square Optic Holders
Click to Enlarge

The DNVB14 single-crystal diamond is retained by flexure tabs on the rear of the CDH30 holder. The optic is mounted closer to the back surface of the holder, allowing for access to the optic at more extreme angles from the rear.


Features

  • Non-Metallic Holders for Unmounted Square Optics
  • Mounting Solution for 2.0 mm to 4.5 mm Square Optics (See Table to the Right for Details)
  • Compatible with Optics 0.45 mm to 0.55 mm Thick
  • Ø1/2" Outer Diameter Fits Standard Ø1/2" (Ø12.7 mm) Optic Mounts

These adapters are designed to accept square optics and have a 1/2" (Ø12.7 mm) outer diameter compatible with standard Ø1/2" (Ø12.7 mm) optomechanical components, including our Ø1/2" (Ø12.7 mm) fixed mirror mounts, SM05 lens tubes, and 16 mm cage components. Models are available for 2.0 mm, 3.0 mm, 4.0 mm, and 4.5 mm square optics; see the Specifications table on the right for the corresponding clear apertures. The bodies of these optic holders are made from Delrin®* while the 0-80 retention screws are made from Nylon, ensuring that there are no metallic parts that could interfere in applications utilizing high-strength electric or magnetic fields.

Optics are retained by flexure tabs on the rear mounting plate (see the photo to the right). This plate is in turn attached to the main body with a pair of 0-80 Nylon flat-head screws. See the Installation tab for more details. Alternatively, the optic can be permanently retained in the main body with an adhesive compatible with Delrin®* like the NOA68 optical adhesive.

These optic holders are compatible with square optics from 0.45 mm to 0.55 mm in thickness. This includes Thorlabs' entire line of Quantum-Grade and Electronic-Grade Single-Crystal Diamonds as well as our 4.5 mm square Surface Enhanced Raman Substrates

*Delrin® is a registered trademark of Dupont Polymers, Inc.

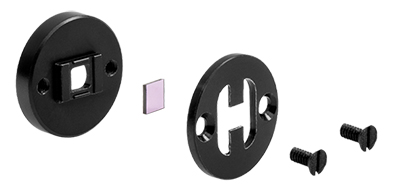

Exploded View of Square Optic Holder Assembly
Click to Enlarge

Exploded View of the Square Optic Adapter Assembly

The square optic is retained by flexure tabs on the rear flexure plate. Use the following instructions to assemble the optic holder without damaging the optic.

  1. Using tweezers, place the optic in the optic seat of the main body. If the optic has a larger face, ensure that it is the surface in contact with the main body.
  2. With one hand, align the flexure plate with the main body, making sure both flexure arms are in contact with the optic.
  3. Without releasing the flexure plate, use a 2.5 mm flat head screwdriver to begin tightening the screws into the main body.
  4. Alternate tightening the two screws until they are snug and approximately flush to the top of the flexure plate. The screws are made from nylon so do not overtighten.

Posted Comments:
No Comments Posted
Back to Top

Ø1/2" Adapters for Unmounted Square Optics

Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
CDH20 Support Documentation
CDH20NEW!Ø1/2" Adapter for 2.0 mm x 2.0 mm Unmounted Square Optics
$70.00
Today
CDH30 Support Documentation
CDH30NEW!Ø1/2" Adapter for 3.0 mm x 3.0 mm Unmounted Square Optics
$70.00
Today
CDH40 Support Documentation
CDH40NEW!Ø1/2" Adapter for 4.0 mm x 4.0 mm Unmounted Square Optics
$70.00
Today
CDH45 Support Documentation
CDH45NEW!Ø1/2" Adapter for 4.5 mm x 4.5 mm Unmounted Square Optics
$70.00
Today
