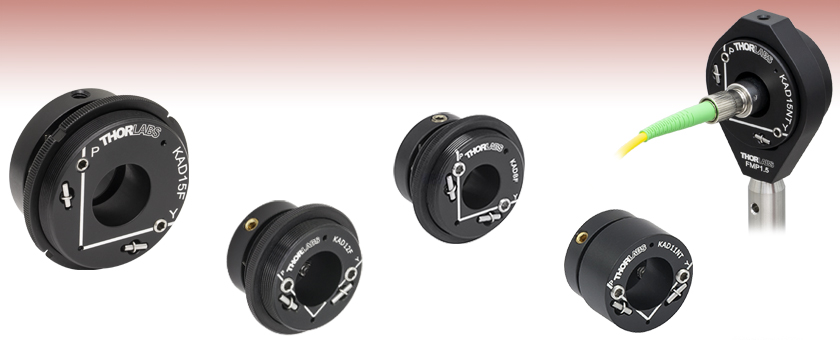

Kinematic Collimator Mounting Adapters


  • Adapters for Ø8 mm, Ø11 mm, Ø12 mm, or Ø15 mm Cylindrical Components
  • Unthreaded or SM-Threaded External Surface
  • Smooth Internal Bore

KAD12F

SM1 External Thread,
Ø12 mm Bore

KAD8F

SM1 External Thread,
Ø8 mm Bore

KAD11NT

1" Outer Diameter,
Ø11 mm Bore

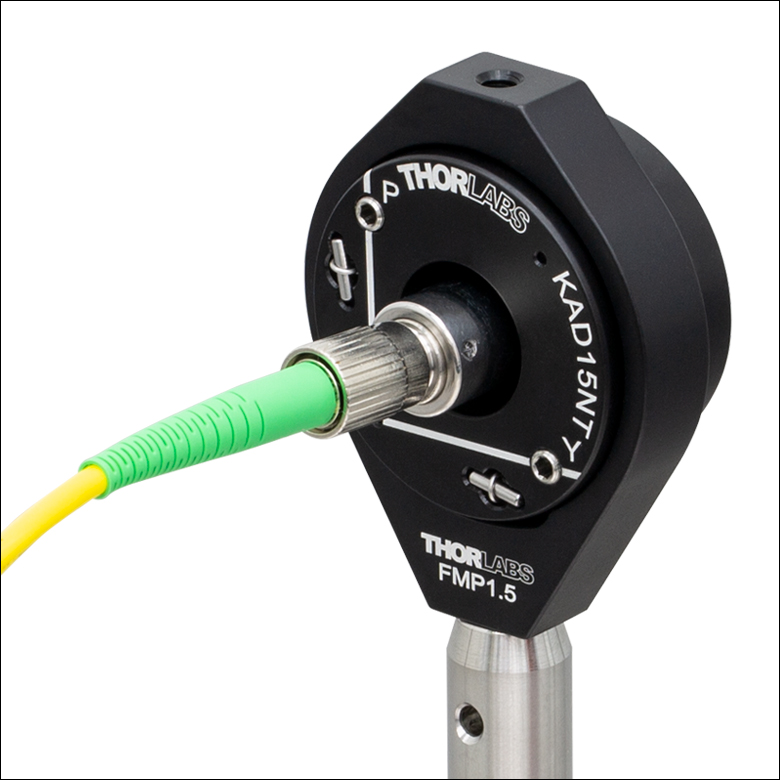

Collimator Secured using an KAD15NT Adapter Mounted into an FMP1.5 Fixed Optical Mount

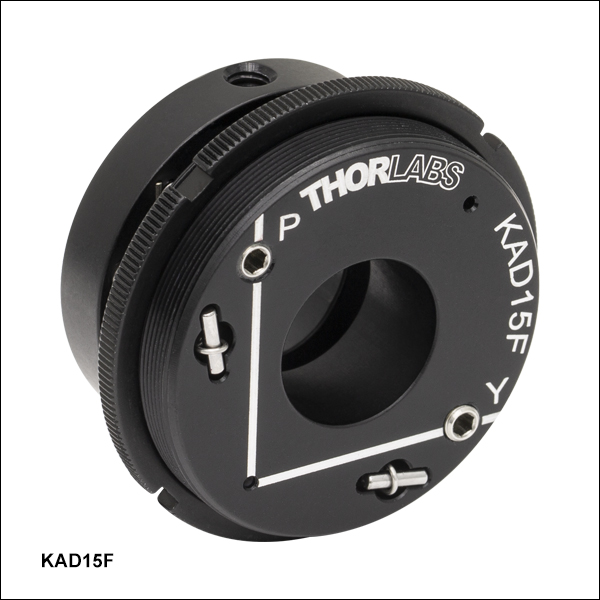

KAD15F

SM1.5 External Thread,
Ø15 mm Bore

Related Items


Please Wait

Features

These kinematic collimator adapters are designed to facilitate the integration of fiber optic or cylindrical components into free-space optical setups (or vice versa). Unlike our fixed collimator adapters, these kinematic mounting adapters provide pitch and yaw adjustment using a 5/64" (2.0 mm) hex key, allowing a collimated beam to be steered by the mount. The adapters are offered unthreaded (smooth 1" or 1.5" outer diameter), externally SM1 (1.035"-40) threaded, or externally SM1.5 (1.535"-40) threaded, enabling compatibility with our fixed lens mounts, lens tube systems, cage systems, and numerous other components. Each adapter is designed so that the optical axis of the collimator will be centered with respect to the outer diameter of the adapter. For coarse rotational adjustment, the non-externally threaded adapters can be mounted in our kinematic mirror mounts.

Alternatively, Thorlabs offers our Mini-Series Kinematic Mount for Ø11 mm Components, which provides ±4° angular adjustment in a more compact size. Unlike the kinematic adapters, the kinematic mount is post-mountable using one of two 4-40 (M3) tapped holes oriented to allow for left- or right-handed mounting.


Posted Comments:
Alexandra Boehmke  (posted 2024-05-17 11:12:56.9)
Hello, I use this mount within a rotation mount (CRM1T/M) to orient the polarization of a fibre-coupled laser + collimator. I find it very difficult to use. The pin to hold the laser within this mount pushes the output beam into an asymmetric orientation that is not normal to the plane of the mount. I try to correct for this with the pitch/yaw, but still, when I rotate the mount+laser, the optical axis precesses. Can you suggest an alternative, please?
cdolbashian  (posted 2024-05-24 10:34:49.0)
Thank you for reaching out to us Alexandra. I have contacted you directly to discuss your application-based difficulties. I hope to hear back from you so we can find a solution.
Jordan Dwelle  (posted 2019-03-18 18:02:59.76)
I'm wondering what the temperature specification is for this device. Also is it possible to get a high temperature customized version? Thanks, Jordan
llamb  (posted 2019-03-19 09:36:27.0)
Hi Jordan, thank you for your feedback. We do not have an official temperature range for this product; we generally advise using it at or around room temperature. The black anodization layer on the aluminum will begin to crack and craze around 100°C. Also, you will likely see reduced performance/poor alignment even before reaching this temperature as the aluminum components expand. I have reached out to you directly to discuss your application's requirements further and if we may be able to provide a custom solution.
Back to Top

Ø1" Unthreaded Kinematic Collimator Adapters


Unthreaded Kinematic Adapters Usage
KAD11NT
Click to Enlarge

CPS405 Laser Diode Module Held in a KAD11NT Adapter and Mounted into an FMP1 Fixed Optical Mount
KAD12NT
Click to Enlarge

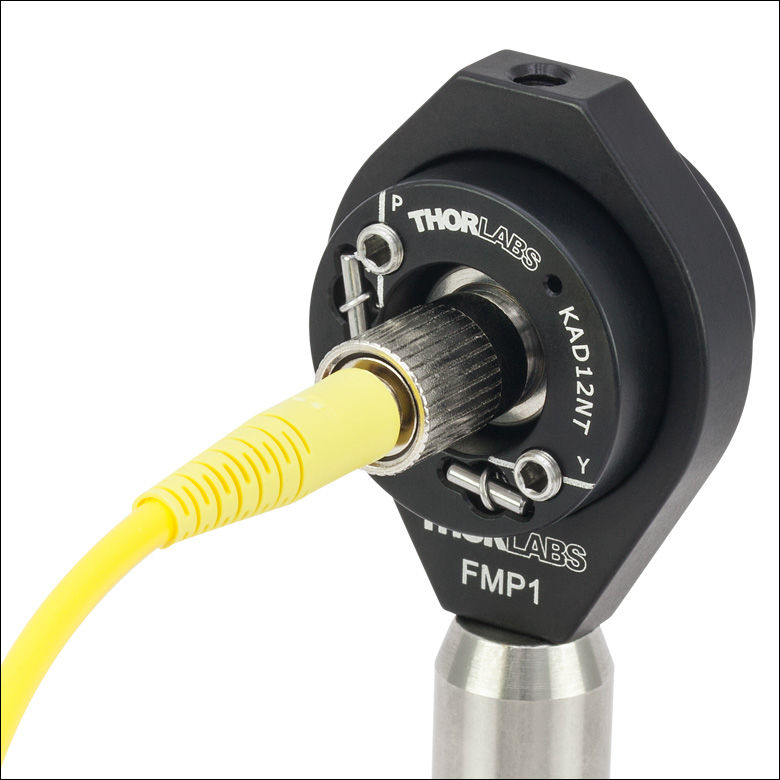

TC06FC-543 Triplet Collimator Held in a KAD12NT Adapter and Mounted into an FMP1 Fixed Optical Mount
  • Compatible with Ø8 mm, Ø11 mm, or Ø12 mm Cylindrical Components
  • Resolution of ~24 mrad/rev
  • Smooth 1" Outer Diameter

These unthreaded, Ø1" kinematic adapters are designed to provide pitch/yaw adjustments of ±6° for Ø8 mm or Ø11 mm cylindrical components, or ±5° for Ø12 mm cylindrical components. They can be used to adapt many of our fixed fiber collimators, laser diode modules, triplet collimators, and other components to our selection of smooth bore mounts for Ø1" optics, such as the FMP1 fixed optic mount.

Two 80 TPI fine adjustment screws on the front plate of the adapter control the pitch and yaw position and can be turned using a 5/64" (2.0 mm) hex key. The front plate of the adapter also features engraved axes that are aligned with the pitch and yaw axes, and two holes for use with our SPW801 spanner wrench. Mounted components are held by a brass locking setscrew, which also requires a 5/64" (2.0 mm) hex key. Please use care when mounting components in these adapters, as overtightening of the setscrew can cause damage to the mounted component.

Item # Intended for Use With: Compatible Component Size Pitch/Yaw
Adjustment
Resolution Length
Diameter Length
KAD8NT Laser Diode Modules 8 mm ≥0.19"
(4.8 mm)
±6° ~24 mrad/rev 0.78"
(19.7 mm)
KAD11NT FC/PC, FC/APC, or SMA905 Fixed Collimators
and Laser Diode Modules
11 mm
KAD12NT FC/PC, FC/APC, or SMA905 Fixed Collimators,
TC12 and TC18 Triplet Collimators (FC/PC and FC/APC)
12 mm ±5°
Based on your currency / country selection, your order will ship from Newton, New Jersey
+1 Qty Docs Part Number - Universal Price Available
KAD8NT Support Documentation
KAD8NTØ1" Kinematic Pitch/Yaw Adapter for Ø8 mm Cylindrical Components
$69.21
Today
KAD11NT Support Documentation
KAD11NTØ1" Kinematic Pitch/Yaw Adapter for Ø11 mm Cylindrical Components
$72.77
Today
KAD12NT Support Documentation
KAD12NTØ1" Kinematic Pitch/Yaw Adapter for Ø12 mm Cylindrical Components
$75.14
Today
Back to Top

SM1-Threaded Kinematic Collimator Adapters


SM1-Threaded Kinematic Adapters Usage
KAD11F
Click to Enlarge
View Imperial Product List
Item #QtyDescription
F671APC-4051405 nm, f = 4.02 mm, NA = 0.60 FC/APC Fiber Collimation Pkg.
KAD11F1SM1-Threaded Kinematic Pitch/Yaw Adapter for Ø11 mm Cylindrical Components
P3-405B-FC-11Single Mode Patch Cable with Pure Silica Core Fiber, 405 - 532 nm, FC/APC, Ø3 mm Jacket, 1 m Long
SM1L101SM1 Lens Tube, 1.00" Thread Depth, One Retaining Ring Included
LMR11Lens Mount with Retaining Ring for Ø1" Optics, 8-32 Tap
TR41Ø1/2" Optical Post, SS, 8-32 Setscrew, 1/4"-20 Tap, L = 4"
View Metric Product List
Item #QtyDescription
F671APC-4051405 nm, f = 4.02 mm, NA = 0.60 FC/APC Fiber Collimation Pkg.
KAD11F1SM1-Threaded Kinematic Pitch/Yaw Adapter for Ø11 mm Cylindrical Components
P3-405B-FC-11Single Mode Patch Cable with Pure Silica Core Fiber, 405 - 532 nm, FC/APC, Ø3 mm Jacket, 1 m Long
SM1L101SM1 Lens Tube, 1.00" Thread Depth, One Retaining Ring Included
LMR1/M1Lens Mount with Retaining Ring for Ø1" Optics, M4 Tap
TR50/M1Ø12.7 mm Optical Post, SS, M4 Setscrew, M6 Tap, L = 50 mm

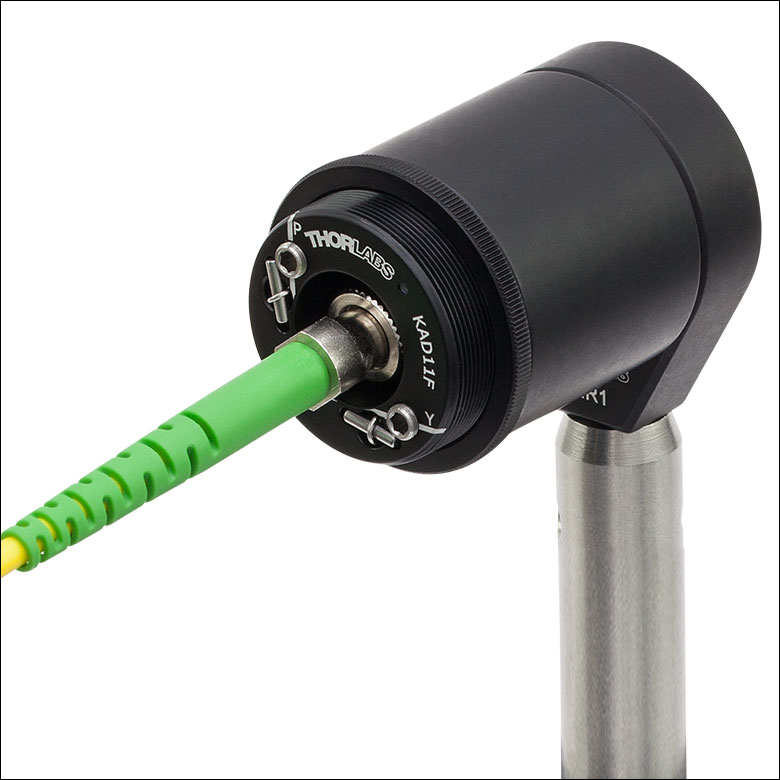

F671APC-405 Fiber Collimator Held in a KAD11F Adapter and Mounted into an SM1L10 Lens Tube
