手动驱动器,8 mm行程
![](https://www.thorlabs.us/Images/GuideImages/1231_8mmdrives_7.jpg)

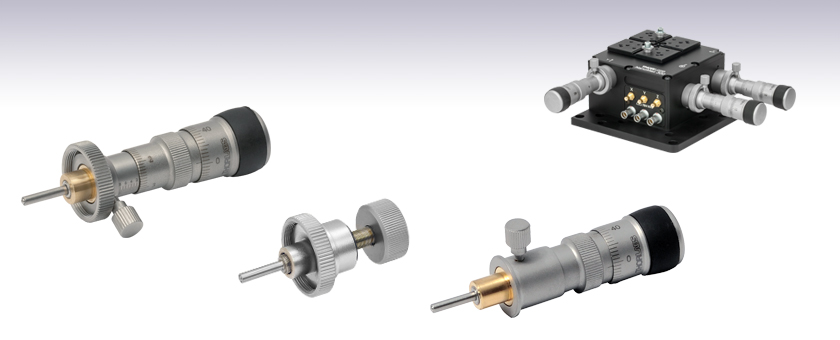

- Modular and Differential Drives
- Compatible with NanoMax™ or RollerBlock™ Stages
- Quick-Connect Adapters for Ø3/8" or Ø10 mm Mounting

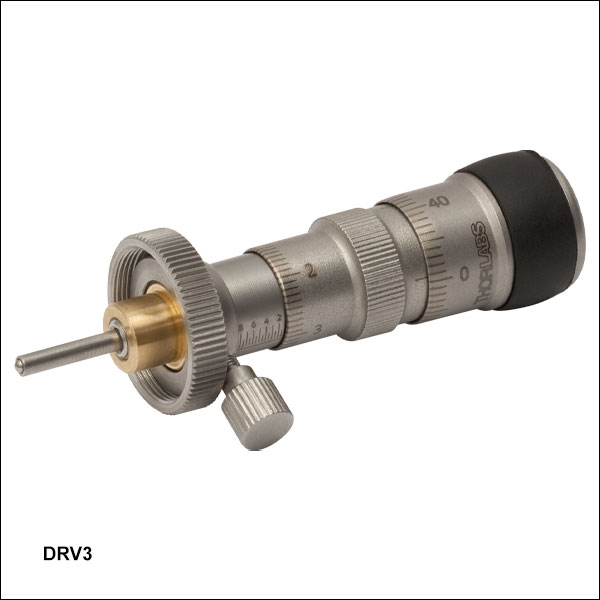

DRV3
Modular Differential Drive
DRV004
Modular Thumbscrew Drive
DM10B
Differential Drive with
Ø3/8" Mounting Barrel
Application Idea
MAX301 3-Axis NanoMax Stage Fitted with DRV3 Drives
![](../../images/loading-red.gif)
Please Wait
![Installing a DRV3 Micrometer](https://www.thorlabs.us/images/TabImages/Translation_Stage_A4-250.jpg)
Click to Enlarge

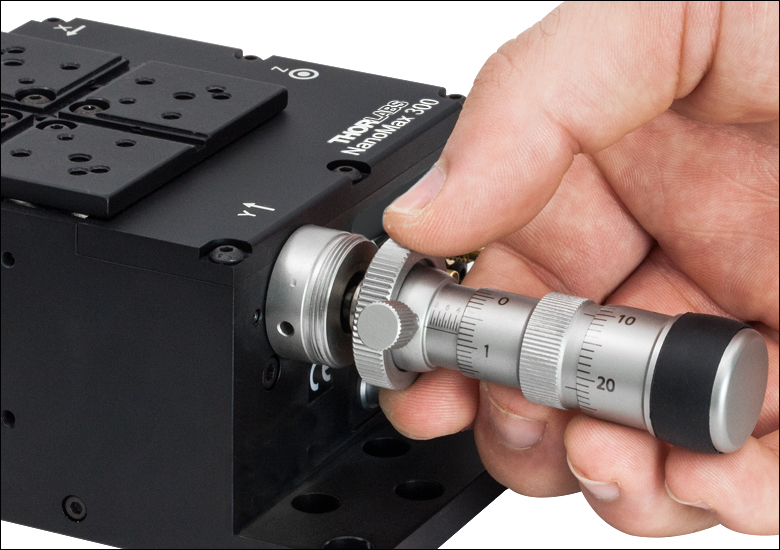

带MCA1转接件的DRV3差分测微头安装在3轴NanoMax™位移台上
![DRV3 Drawing](https://www.thorlabs.us/images/tabimages/DRV3_MCA1_Adapter_A1-200.gif)
Click to Enlarge

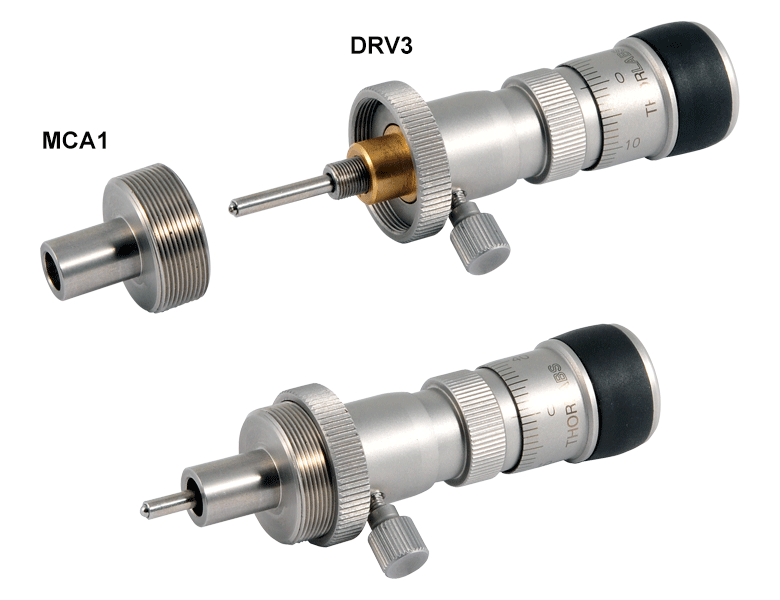

DRV3差分测微头和MCA1转接件的的组装
特性
- 模块化手拧驱动器和差分驱动器,用于NanoMax™位移台
- 快速连接的转接件可安装到标准Ø3/8英寸(Ø9.5 mm)或Ø10 mm安装筒
- 差分驱动器具有Ø3/8英寸(Ø9.5 mm)安装筒,用于RollerBlock™位移台
Thorlabs提供许多种手动驱动器,可与NanoMax™和RollerBlock™位移台配合使用。DRV004手拧和DRV3差分驱动器可与快速连接的转接件一起使用,以安装具有标准Ø3/8英寸(Ø9.5 mm)或Ø10 mm安装夹具的组件;见右侧示例。
Posted Comments: | |
antoine reserbat
 (posted 2022-11-30 14:32:24.827) Hello, when unscrewing the micro adjustment part, it eventually came off. We tried to screw it back but then how to replace the small ball inside ? cwright
 (posted 2022-12-06 06:50:01.0) Response from Charles at Thorlabs: Thank you for your query. I will reach out to you to confirm I understand the ball bearing you refer to, as there are multiple in this assembly, but you should be able to reassemble this without much trouble. Once I have confirmed the exact issue I will assist with this. phycfc
 (posted 2017-03-28 15:12:59.427) I am designing to use this part as a micrometer fine adjustment for a microscope stage. What is the load limit (weight) for DM10B? bhallewell
 (posted 2017-05-19 10:26:23.0) Response from Ben at Thorlabs: This matches the same load capacity as our DRV001, rated at 48 lbs (21.8 kg) kirk.strozewski
 (posted 2016-06-22 11:47:11.343) I have a question on the DM10B actuator. I think I get how the fine resolution is 0.5um: 50 um per turn, 50 divisions per turn so 1 um per division ... assume I can do a half division turn so 0.5um for fine resolution.
With this same reasoning wouldn't I get 5um sensitivity for the coarse resolution ... how does one get to the 1um coarse sensitivity that's listed ? besembeson
 (posted 2016-06-23 03:38:18.0) Response from Bweh at Thorlabs USA: We are reviewing this and I will follow-up with you please. |
![Back to Top Back to Top](https://www.thorlabs.us/images/arrow_Vert.gif)
Specification | Value |
---|---|
Travel Range | 8 mm (0.31") |
Travel Per Revolution | 500 µm |
Resolution | 1 µm |
Directly Compatible Stages | MAX300 and MAX600 Series |
Stage Compatibility with MCAx Mounting Adapter | Any Stage with Ø3/8" (Ø9.5 mm) or Ø10 mm Mounting Clamp |

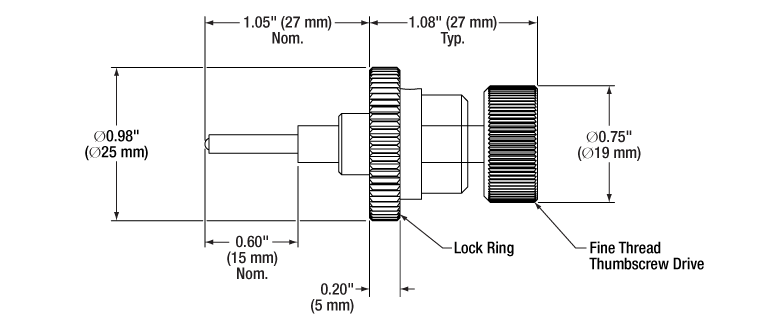

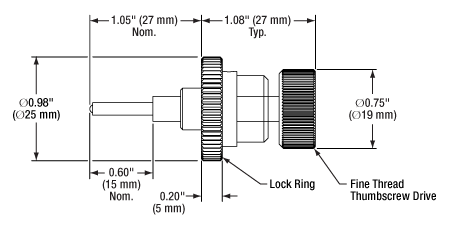

DRV004手拧驱动器兼容我们的NanoMax MAX300和MAX600系列位移台. 大直径滚花旋钮提供了极佳的灵敏度,在整个8 mm的调节范围内的分辨率为1 µm。拧下现有驱动器即可安装DRV004。
当与可选用的模块化快速连接的转接件(MCA1和MCA2)一起使用时,DRV004驱动器也可以连接到带有标准3/8英寸(9.5 mm)或10 mm安装夹具的组件上。此外,DRV004驱动器可与DRV120压电驱动器一起使用,从而增加20 µm的电子控制压电驱动行程。
![Back to Top Back to Top](https://www.thorlabs.us/images/arrow_Vert.gif)
Specification | Value |
---|---|
Travel Range | 8 mm (0.31") Coarse, 300 µm Fine |
Travel Per Revolution | 500 µm (Coarse) 50 µm (Fine, Nominal) |
Resolution | 5.0 µm (Coarse) 0.5 µm (Fine) |
Directly Compatible Stages | MAX300 and MAX600 Series |
Stage Compatibility with MCAx Mounting Adapter | Any Stage with Ø3/8" (Ø9.5 mm) or Ø10 mm Mounting Clamp |
- 适合我们的MAX300和MAX600系列多轴位移台
- 齿隙< 0.5 µm
- 带刻度的控制旋钮(50格)
- 控制旋钮上带有正行程限位开关
- 非旋转的硬质钢球
- 软橡胶把手降低热传导
- 兼容MCA1和MCA2模块化快速连接的转接件

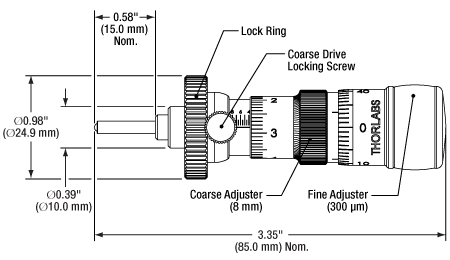

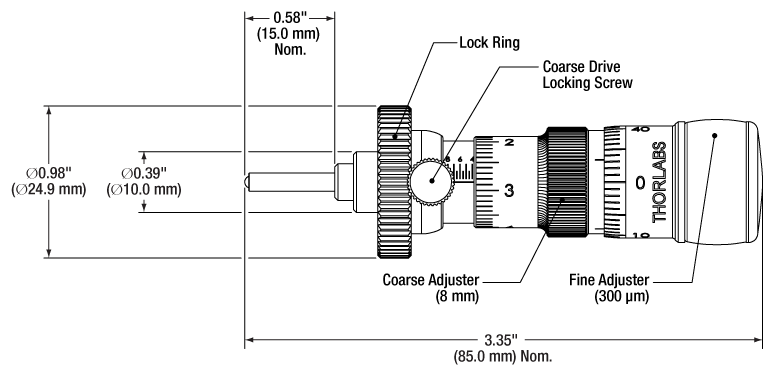

DRV3 8 mm差分调节器是下方DM10B调节器的模块化快速连接版本,兼容我们的NanoMax MAX300和MAX600系列位移台。拧下现有驱动器即可安装DRV3驱动器。
两个大旋钮用于粗调和细调。粗调可在8 mm行程内提供每转500 µm,而细调的行程为300 µm、标称每转为50 µm(精细刻度与距离的比例不是线性关系)。当与可选用的模块化快速连接的转接件(MCA1和MCA2)一起使用时,DRV3驱动器也可以连接到带有标准3/8英寸(9.5 mm)或10 mm安装夹具的组件上。此外,DRV3驱动器可与DRV120压电驱动器一起使用,从而增加20 µm的电子控制压电驱动行程。
![Back to Top Back to Top](https://www.thorlabs.us/images/arrow_Vert.gif)
Specification | Value |
---|---|
Coarse Travel Range | 8 mm (Coarse) 300 µm (Fine) |
Travel Per Revolution | 500 µm (Coarse) 50 µm (Fine, Nominal) |
Resolution | 0.5 µm (Fine) |
Directly Compatible Stages | RollerBlock™ RB13 Series or Any Stage with Ø3/8" (Ø9.5 mm) Mounting Clamp |
Stage Compatibility with MCAx Mounting Adapter | N/A |
- 适用于我们的RollerBlock™系列线性位移台
- 齿隙< 0.5 µm
- 带刻度的控制旋钮(50格))
- 控制旋钮上带有正行程限位开关
- 非旋转的硬质钢球
- 软橡胶把手降低热传导

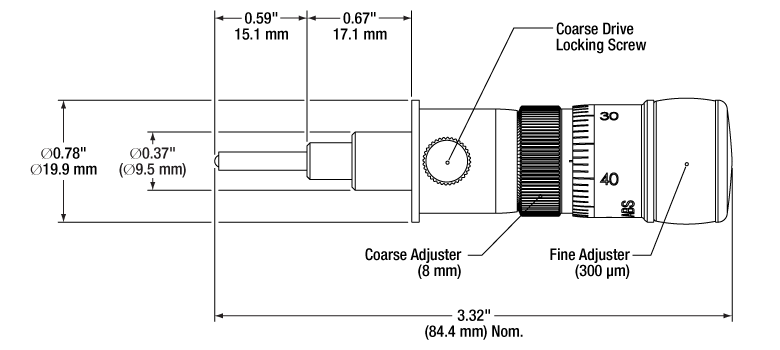

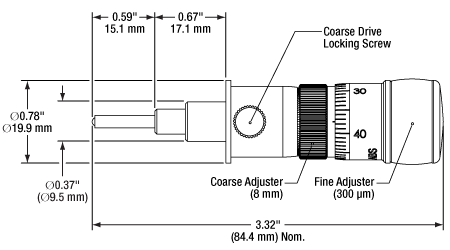

DM10B高精度调节器提供了高分辨率和重复率。杠杆机制放大了高精度精细调节螺纹的分辨率,使轴向位移小。这种独特方式提供了均匀的平滑运动,很大程度上与负载无关。
两个大旋钮用于粗调和细调。粗调提供8 mm行程,而微调提供300 µm行程。DM10B驱动器具有Ø3/8英寸(Ø9.5 mm)安装筒,并兼容我们的RollerBlock™系列线性位移台或任何带有Ø3/8英寸(Ø9.5 mm)安装夹具的位移台。此调节器不兼容我们的MCA1和MCA2模块化快速连接的转接件。
