OEM Laser Diode Driver: Constant Power

Constant Power
APC Laser Driver, 0 - 250 mA
Driver Kits Pre-Wired to Styles A & B

LD1100

LD1101

EK1102

Related Items

OEM Laser Diode Drivers

Laser Diodes

Customizable Benchtop Enclosures

Compact LD / TEC Driver

ESD Protection / Strain Relief Cables

High-Power Mount

OEM TEC Controllers

Please Wait

Overview
Pin Diagrams
Smart Pack
Feedback
Selection Guide

Item#	LD1100	LD1101	EK1101^a	EK1102^b
Output Current	0 - 250 mA
Supported Laser Pin Configurations	A, B, D, & F	C, D, & F	A	B
Recommended for LEDs^b	No	No	Yes	Yes
Output Control	12-Turn Power Adjustment (On-Board)
Output Stability	1.5%
Output Noise	5 μA RMS
Feedback Gain	Adjustable
Monitor Current Range	5 μA to 5 mA
Operating Voltage	8 to 12 VDC
Quiescent Current	9 mA
Dimensions	1" x 1.5" 12-Pin SIP Package		See Drawing
ESD Protection	100 ms Slow Start
Max Output Voltage	~6.5 V (with a 12 V Power Supply)

The EK1101 and EK1102 can be used with pin configurations D and F if the included socket is replaced with a suitable 4-pin socket. The socket must be wired correctly in order to support the pin style.
With monitor photodiode.

Laser Diode Drivers
The LD1100 and LD1101 Laser Diode Drivers are constant-power laser driver modules that support common laser anode and common laser cathode pin configurations. They feature an on-board 12-turn trim pot for continuous laser power output adjustment, pin-programmable feedback gain, ON/OFF control input, and a current monitor output for observing the laser drive current. With dimensions of only 1" x 1.5", they are compact and can be embedded into custom designs. The compliance voltage, which is the maximum output voltage, is ~6.5 V for the LD1100 and LD1101 when using a 12 V power supply. All input and output signals are provided on a 12-pin SIP connector, which allows simple integration into a printed circuit design.

The LD1100 and LD1101 can drive lasers up to 250 mA in a constant-power mode. Either uses the internal monitor photodiode for a feedback signal into a proportional-integral feedback loop to stabilize the output power to within 1.5%. To accommodate a wide range of laser diodes, the feedback gain can be set by using jumpers between any combination of the five gain setting resistor pins to the power supply common. This allows lasers with monitor currents over a range from 5 μA to 5 mA to be used with a single driver.

Evaluation Kits
The EK1100 Series Evaluation Kit is an LD1100 Laser Driver soldered to a PCB that features an on/off switch and a dip switch bank for controlling the gain on the feedback signal. A 3-pin laser socket cable (S8060) is also soldered onto the PCB board (this determines the pin configuration supported by the kit). In addition to driving lasers, the EK1101 and EK1102 are also suggested for operating LEDs that contain a monitor photodiode with an A or B style pin configuration, respectively.

Power Supply Options
A power supply cable for 9 V batteries is included but not attached. Alternatively, our LDS9 power supply can be used if the phono connector is removed and the bare wires are exposed.

Note on Cosmetic Appearance
The physical appearance of the board-level components on the LD1100 and LD1101 drivers may vary from that pictured above. Regardless of their appearance, the drivers conform to the electrical and operational specifications described here.

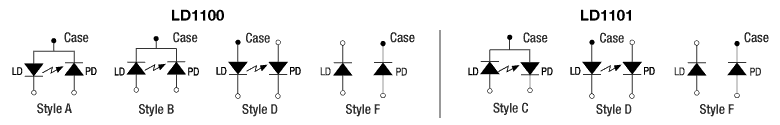

Supported Pin Configurations

LD1100 Pin Configurations

Pin	Signal	Description
1	+V	Circuit Power, 8 to 12 VDC, 9 mA + Laser Drive Current NOTE: Internally tied to Laser Diode Anode, the laser anode must be isolated from the power supply COM
2	COM	Circuit Ground
3	V_REF	Internal 2.5 V reference
4	PDA	Photodiode Anode
5	LDA	Laser Diode Anode (Internally Tied to +V (Pin 1))
6	LDC	Laser Diode Cathode
7	RA	When Tied to Common, Puts 100 kΩ in Parallel with 249 kΩ Internal Gain Resistor
8	RB	When Tied to Common, Puts 33.2 kΩ in Parallel with 249 kΩ Internal Gain Resistor
9	RC	When Tied to Common, Puts 10 kΩ in Parallel with 249 kΩ Internal Gain Resistor
10	RD	When Tied to Common, Puts 3.32 kΩ in parallel with 249 kΩ Internal Gain Resistor
11	RE	When Tied to Common, Puts 1 kΩ in Parallel with 249 kΩ Internal Gain Resistor
12	I_LD	Laser Diode Current Monitor (10 mV/mA)

LD1101 Pin Configurations

Pin	Signal	Description
1	+V	Circuit Power, 8 to 12 VDC, 9 mA + Laser Drive Current NOTE: Internally tied to Laser Diode Anode. The laser anode must be isolated from the power supply COM.
2	COM	Circuit Ground
3	V_REF	Internal 2.5 V reference
4	PDC	Photodiode Cathode
5	LDA	Laser Diode Anode (Internally Tied to +V (Pin 1))
6	LDC	Laser Diode Cathode
7	RA	When Tied to Pin 6, Puts 5 kΩ in parallel with 12.4 kΩ Internal Gain Resistor
8	RB	When Tied to Pin 6, Puts 1.5 kΩ in parallel with 12.4 kΩ Internal Gain Resistor
9	RC	When Tied to Pin 6, Puts 499 Ω in parallel with 12.4 kΩ Internal Gain Resistor
10	RD	When Tied to Pin 6, Puts 160 Ω in parallel with 12.4 kΩ Internal Gain Resistor
11	RE	When Tied to Pin 6, Puts 33 Ω in parallel with 12.4 kΩ Internal Gain Resistor
12	I_LD	Laser Diode Current Monitor (10 mV/mA)

EK1101

Laser Anode - Photodiode Cathode Common

Pin Style A

Laser Pin	J1 Pin (on Evaluation Board)	Wire Color
PDA	PD_A	Green
LDA/PDC	LD_A	Red
LDC	LD_C	Yellow

EK1102

Laser Cathode - Photodiode Cathode Common

Pin Style B

Laser Pin	J1 Pin (on Evaluation Board)	Wire Color
PDA	PD_A	Green
LDA	LD_A	Yellow
LDC/PDC	LD_C	Red

EK110x Laser Socket Wire Harness

Laser Socket

Click to Enlarge

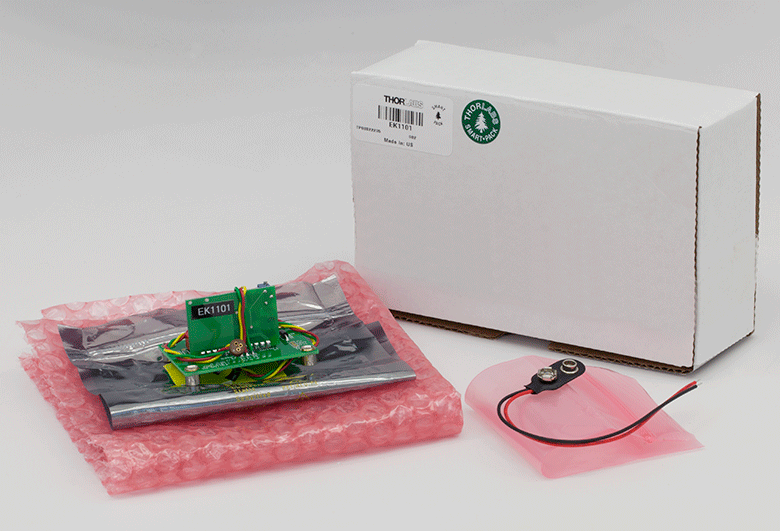

EK1101 Packaging

Smart Pack

Reduce Weight of Packaging
Increase Usage of Recyclable Materials
Improve Packing Integrity
Decrease Shipping Costs

Thorlabs' Smart Pack Initiative is aimed at minimizing waste while providing adequate protection for our products. By eliminating any unnecessary packaging, implementing design changes, and utilizing eco-friendly materials, this initiative seeks to reduce the environmental impact of our product packaging.

The updated EK1101 and EK1102 packaging primarily consists of recycled paper and cardboard and weighs 19.70% less than the original packaging. This weight change results in a 3.79 kg reduction in travel-based CO₂ emissions per year, based on typical product sales.

As we move through our product line, we will indicate re-engineered, eco-friendly packaging with our Smart Pack logo, which can be seen above.
