Products Home / Optomechanical Components / Optical Cage Systems / Cage System Construction / 16 mm Cage System Construction Rods16 mm Cage System Construction Rods
- Building Blocks for 16 mm Cage System
- Ø4 mm Precision-Machined Stainless Steel Rods
- Ideal for Complex Optical Structures
SRSCA
Rod Adapter
SR1
S1A
Cross Coupler
Application Idea
For Details, See the Construction Tab Below
S3A
Swivel Connector
SR6E
SR3
SR2
Please Wait
The Cage Assembly System provides a convenient way to construct large optomechanical systems with an established line of precision-machined building blocks designed for high flexibility and accurate alignment. This page offers cage assembly rods for our 16 mm Cage System. For 30 and 60 mm Cage Systems, please see our ER construction rods page. Please see the Cage Overview tab for more details on this widely adopted construction standard.
Standard Assembly Rods
Our precision-ground cage assembly rods are basic building blocks used to construct optical systems. These rods are most commonly used as precision guides for our cage assembly plates and have a 4 mm diameter for 16 mm cage systems. Each rod has a removable 4-40 stud in each end, and all rods are designed to be stackable. An infinite array of systems can be assembled when used in conjunction with our cage plates and lens tubes. Please see the Construction tab for more information on building cage systems.
Cage rods with an engraved, graduated scale are available in lengths of 4" and 6". The scale consists of tick marks every 1 mm over the entire length of the cage rod.
Cage Couplers and Adapters
The 16 mm cage rod adapters offered here enable the easy addition or removal of components from cage assemblies. The SRSCA cage adapter allows two 4-40 internally threaded components to be connected using Ø4 mm SR rods. The S1A cage rod coupler provides a method of connecting rods at 90° angles.
Swivel Connector
The S3A swivel connector can be used to connect cage assemblies at arbitrary angles. These parts are made from stainless steel and provide an extremely rigid structure.
Click to Enlarge
SRSCA 1D Construction
Cage Rod Adapter
The SRSCA SR rod adapter allows for the end-to-end joining of two SR rods. It has an internal bore on one end that accepts Ø4 mm SR series rods. To join two rods, position the end of one rod inside the SRSCA, and lock it into place using the locking setscrew. Thread the other end of the SRSCA into the other rod (see photo at right).
3D Construction Using Cage Systems
These assembly rods are essential components when configuring cage systems in complex, multi-dimensional structures.
For 30 and 60 mm cage systems, the ER90C right angle rods offer a fixed 90° connection to a cage system (see photo to left). Using the ER90A spacer rod for 30 mm cage systems and the ER90L spacer rod for 60 mm cage systems will ensure center-to-center spacing. Alternatively, a cage cube can be used to create a rigid 90° connection.
Our swivel connectors can be configured to any arbitrary angle before being locked into place. The C3A connector, for 30 and 60 mm cage systems, is pictured to the right. We also offer the S3A connector for 16 mm cage systems.
When constructing complex optomechanical cage assemblies, it is sometimes necessary to couple one cage subsystem to another. Between the S1A cross coupler for 16 mm cages, the C1A cross coupler for 30 and 60 mm cage systems, and the C2A swivel coupler with 180° swing, virtually any configuration can be achieved.
The SRSCA SR rod adapters and ERSCB ER rod adapters are also useful for 3D construction in 16 mm cage systems or 30 and 60 mm cage systems, respectively. They can be used to connect two internally threaded cage components with SR (SRSCA) or ER (ERSCB) rods, and allow components to be easily added or removed from setups without causing misalignment. In the application shown to the left, four ERSCB adapters are used with ER rods to connect a 30 mm cage cube to an ST1XY-S micrometer-driven, XY translation mount. The four cage rods are directly threaded into four holes in the cage cube. Since the other end of each cage rod is internally threaded, they cannot be directly threaded into the translation mount. Instead, the threaded side of the ERSCB adapter is connected to the ST1XY-S translation mount. Each cage rod slides into the other side of each adapter and is secured in place with the setscrew.
Application Idea
The cage assembly components offered here can be used to couple 16 mm, 30 mm, and 60 mm cage systems. The following tables correspond to either the imperial or metric item list for the setup below.
Cage System Overview
The Cage Assembly System provides a convenient way to construct large optomechanical systems with an established line of precision-machined building blocks designed for high flexibility and accurate alignment.
16 mm, 30 mm, and 60 mm Cage System Standards
Thorlabs offers three standards defined by the center-to-center spacing of the cage assembly rods (see image below). The 16 mm cage, 30 mm cage, and 60 mm cage standards are designed to accommodate Ø1/2", Ø1", and Ø2" optics, respectively. Specialized cage plates that allow smaller optics to be directly inserted into our larger cage systems are also available.
Standard Threads
The flexibility of our Cage Assembly System stems from well-defined mounting and thread standards designed to directly interface with a wide range of specialized products. The three most prevalent thread standards are our SM05 Series (0.535"-40 thread), SM1 Series (1.035"-40 thread), and SM2 Series (2.035"-40 thread), all of which were defined to house the industry's most common optic sizes. Essential building blocks, such as our popular lens tubes, directly interface to these standards.
An example of the standard cage plate measurements determining cage system compatibility.
| Standard Cage System Measurements | |||
|---|---|---|---|
| Cage System | 16 mm | 30 mm | 60 mm |
| Thread Series | SM05 | SM1 | SM2 |
| Rod to Rod Spacing | 16 mm (0.63") | 30 mm (1.18") | 60 mm (2.36") |
| Total Length | 25 mm (0.98") | 41 mm (1.60") | 71.1 mm (2.80") |
| Cage Components | ||
|---|---|---|
| Cage Rods | 16 mm | These rods are used to connect cage plates, optic mounts, and other components in the cage system. The SR Series Cage Rods are compatible with our 16 mm cage systems, while the 30 mm and 60 mm cage systems use ER Series Cage Rods. |
| 30 mm | ||
| 60 mm | ||
| Cage Plates | 16 mm | These serve as the basic building blocks for a cage system. They may have SM-threaded central bores, smooth bores sized for industry standard optics or to accommodate the outer profile of our SM Series Lens Tubes, or specialized bores for other components such as our FiberPorts. |
| 30 mm | ||
| 60 mm | ||
| Optic Mounts | 16 mm | Thorlabs offers fixed, kinematic, rotation, and translation mounts specifically designed for our Cage Systems. |
| 30 mm | ||
| 60 mm | ||
| Cage Cubes | 16 mm | These cubes are useful for housing larger optical components, such as prisms or mirrors, or optics that need to sit at an angle to the beam path, such as beamsplitters. Our cage cubes are available empty or with pre-mounted optics. |
| 30 mm | ||
| 60 mm | ||
| Replacement Setscrews | Replacement setscrews are offered for our 16 mm (SS4B013, SS4B025, and SS4B038) and 30 mm (SS4MS5 and SS4MS4) cage systems products. | |
| Post and Breadboard Mounts and Adapters | Mounting options for cage systems can be found on our Cage System Construction pages. Cage Systems can be mounted either parallel or perpendicular to the table surface. | |
| Size Adapters | Cage System Size Adapters can be used to integrate components from different cage system and threading standards. | |
| Specialized Components | Thorlabs also produces specialized cage components, such as Filter Wheels, a HeNe Laser Mount, and a FiberPort Cage Plate Adapter, allowing a wide range of our products to be integrated into cage-mounted optical systems. Explore our Cage Systems Visual Navigation Guide to see the full range of Thorlabs' cage components. | |
| Posted Comments: | |
Mark Gyamfi
(posted 2021-07-01 07:37:28.55) Would it be possible to get the 16mm cage rods engraved similar to the 30mm rods? YLohia
(posted 2021-07-01 10:30:26.0) Thank you for contacting Thorlabs. Custom products can be requested by emailing your local Thorlabs Tech Support team (in your case, europe@thorlabs.com). We will discuss the possibility of offering this directly. Lee Aspitarte
(posted 2019-11-04 19:06:35.48) Hi, I would be interested in the completely non-magnetic cage rods that besembeson mentioned could be possibly manufactured in a previous comment. llamb
(posted 2019-11-05 05:02:53.0) Thank you for contacting Thorlabs. I will reach out to you directly to discuss this possibility. pmintun
(posted 2014-10-21 11:07:56.42) Are the cage systems constructed out of nonmagnetic materials? besembeson
(posted 2014-10-23 10:14:18.0) Response from Bweh: These are made from 303 stainless steel and aluminum (S1A) so they are technically non-magnetic. The ER rods show very weak magnetism after the machining process though. If you desire completely non-magnetic rods, I can look into this for you. |
Zoom- For use with 16 mm Compact Cage Systems
- Available in Lengths Ranging from 1/4" to 8"
- Ø4 mm Precision-Ground Stainless Steel Rods
- 4-40 Removable Setscrew at Both Ends
- Packs of 4 avalible for 1/2" to 4" Lengths
These 16 mm cage rods are made from stainless steel and are designed for use with our Compact Cage Components. The 4-40 threaded setscrew at each end of the cage rod can be removed, leaving a 4-40 tapped hole. This allows multiple cage rods to be connected end-to-end.
Replacement setscrews can be purchased in packs of 50.
Zoom- Engraved Scale (Increments of 1 mm) for Accurate Adjustments
- For use with 16 mm Compact Cage Systems
- Available in Two Lengths: 4" and 6"
- Ø4 mm Precision-Ground Stainless Steel Rods
- 4-40 Removable Setscrew at Both Ends
These graduated SR rods are identical to the 4" and 6" SR Rods above, but feature an engraved scale along the side. The rods have short tick marks every 1 mm, long tick marks every 5 mm, and a straight line along the rod's entire length. The engraved rods simplify alignment issues, especially in complicated setups with multiple components and integrated cage systems. For custom lengths, please contact Tech Support.
Zoom
- Internally Accepts Ø4 mm SR Series Rods
- 4-40 Threaded Stud and 2-56 Locking Setscrew with 5/64" (2.0 mm) Hex
- Easily Add or Remove Components from Cage Assemblies
- Also Available in Packs of Four
The SRSCA is a stud adapter that will allow any cage assembly to be easily separated when adding or removing components. This adapter has an internal bore on one end that accepts a Ø4 mm SR series rod with its setscrew removed. The mounting stud collar must be tightened using the locking setscrew with a 5/64" (2 mm) hex key to hold the SR rod in place. On the other side of the adapter, there is an externally 4-40 threaded stud that can be threaded into the end of another SR series rod or 4-40 internally threaded cage component.
As seen in the images below, the SRSCA is particularly useful for connecting two internally 4-40 threaded cage system components with Ø4 mm SR series cage rods.

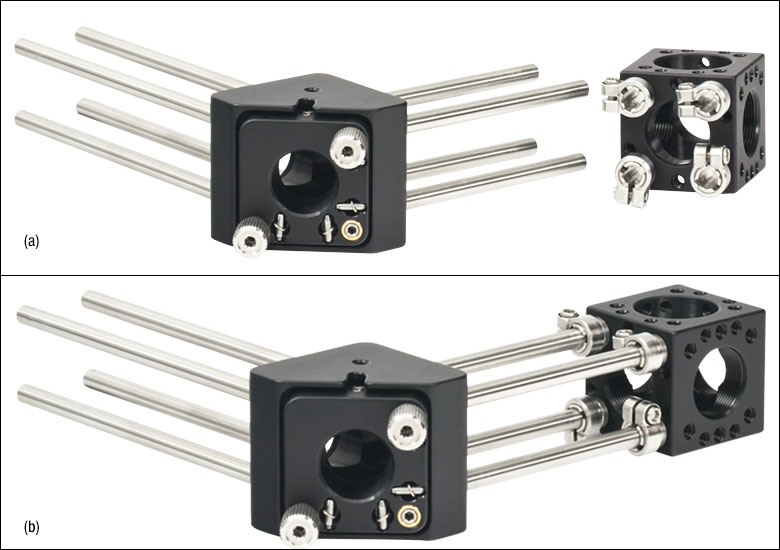

Thread the SR series cage rods directly into the KCB05 16 mm Right-Angle Kinematic Cage Mount as shown above. Then thread four SRSCA adapters into the SC6W Compact 6-Way Cage Cube. Finally, insert the Ø4 mm SR series rods into the internal bores on the SRSCA adapters and secure using the 2-56 locking setscrews.
Zoom
- Connect Ø4 mm SR Rods at 90°
- Two 5/64" (2 mm) Hex Screws Provide Clamping Force
- Flexure Clamping Design
The S1A cross coupler is designed for Thorlabs' Ø4 mm, SR series of cage rods. This coupler provides a method to attach a terminating SR rod at 90° to an SR rod that is passed through the clamp. Using two cap screws, the flexure design clamps onto both cage rods. The S1A is ideal for constructing 3D cage structures based on Thorlabs' 16 mm cage system, as shown in the example at right (for details, see the Construction tab).
Zoom
- 180° of Total Swing
- Ideal for Near-Normal Angles
- Lockable Design for Greater Rigidity
- Ø4 mm Precision-Ground Stainless Steel
- 2 mm Hex Locking Screw
The S3A swivel connector allows 16 mm SR cage assembles to be connected at a range of angles up to ±90° from the system normal. Made from stainless steel, these lockable couplers result in very rigid structures.
