Concave Mirrors: UV Broadband Dielectric Coating (350 - 400 nm)
![](https://www.thorlabs.us/Images/GuideImages/5506_DielectricConcaveMrrs_9.jpg)
- Focal Lengths from 25 - 100 mm
- 1" Diameter
- Dielectric Coating for 350 - 400 nm
- No Chromatic Aberration Introduced
CM254-050-E01
f = 50 mm
Focus Polychromatic Beams without Chromatic Aberration
CM254-100-E01
f = 100 mm
![](../../images/loading-red.gif)
Please Wait
Common Specifications | |
---|---|
Dielectric Coating Range | 350 - 400 nm; Ravg >99% |
Clear Aperture | >90% of Diameter |
Surface Irregularity | λ/4 @ 633 nm |
Surface Quality | 20-10 Scratch-Dig |
Diameter Tolerance | +0.0/-0.2 mm |
Thickness Tolerance | ±0.2 mm |
Substrate | N-BK7a |
Backside Surface | Fine Ground and Engraved with Part Number (Not Polished) |
Dielectric Concave Mirrors Selection Guide | |||
---|---|---|---|
UV | 350 - 400 nm | ||
Visible | 400 - 750 nm | 400 - 750 nm, Back Side Polished | |
NIR | 750 - 1100 nm | 750 - 1100 nm, Back Side Polished | |
Telecom | 1280 - 1600 nm |
See the Concave Mirror Guide tab, above, for our complete selection of concave mirrors.
Features
- Dielectric Coating: 350 - 400 nm (-E01)
- >99% Average Reflectivity in Dielectric Coating Range
- 1" Diameter
- Focal Lengths Range from 25 mm - 100 mm
Thorlabs' Broadband Dielectric Concave Mirrors are designed for light collection, imaging, and focusing applications. These reflective optics focus light without introducing chromatic aberration, making them especially suitable for broadband sources.
All of the mirrors on this page can be mounted by our Precision Kinematic Mirror Mounts.
Thorlabs also offers metallic concave mirrors that operate over a broader wavelength range at the expense of lower reflectivity. Please contact Tech Support for custom versions of these optics.

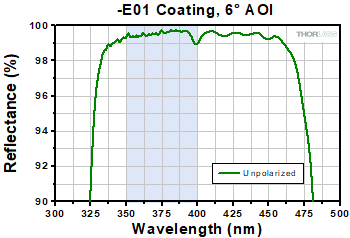

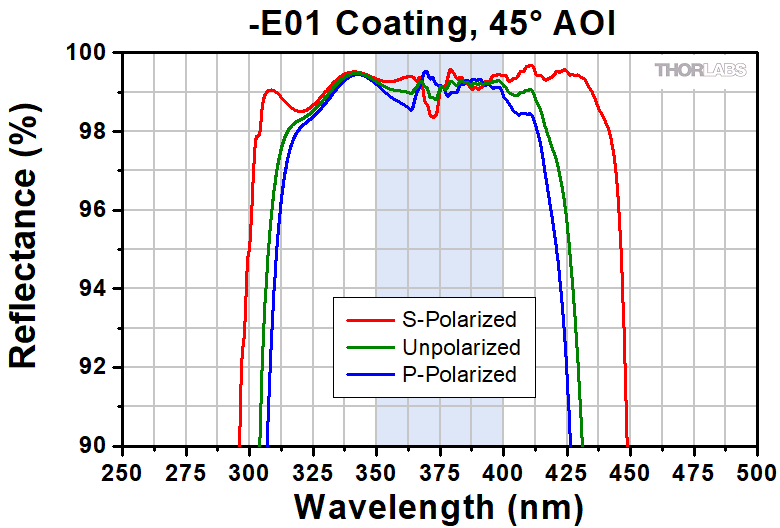

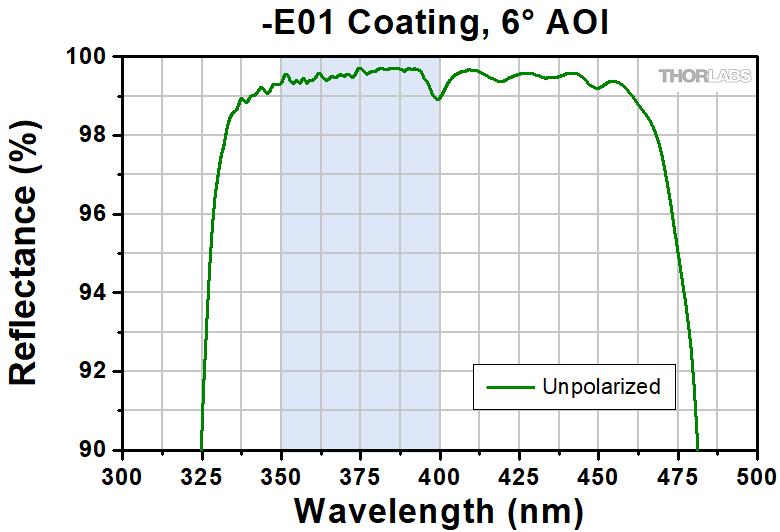

These plots show the reflectivity of our -E01 dielectric coating for a typical coating run. The shaded region in each graph denotes the spectral range over which the coating is highly reflective. Due to variations in each run, this recommended spectral range is narrower than the actual range over which the optic will be highly reflective. If you have any concerns about the interpretation of this data, please contact Tech Support. For applications that require a mirror that bridges the spectral range between two dielectric coatings, please consider a metallic concave mirror.
