Implantable Fiber Optic Cannulae, Ø200 µm Core, 0.39 NA Fiber

Cannulae with Ø200 µm Core, 0.39 NA Multimode Fiber
Multiple Ferrule Size and Material Options
2 mm to 20 mm Cleaved and 50 mm Uncleaved Cannulae
Custom Versions Available

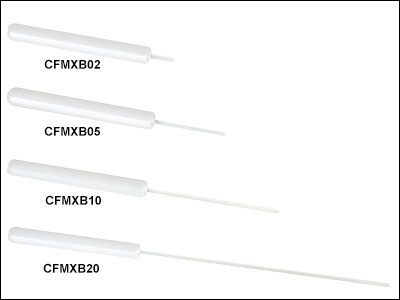

CFMXB10

10 mm Cleaved Fiber, 10.5 mm Long Ferrule

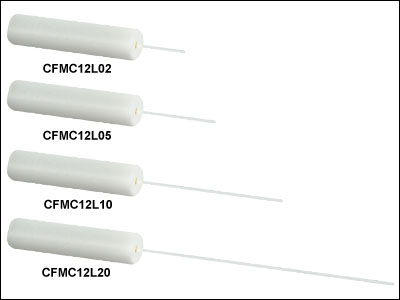

CFMC12L20

20 mm Cleaved Fiber

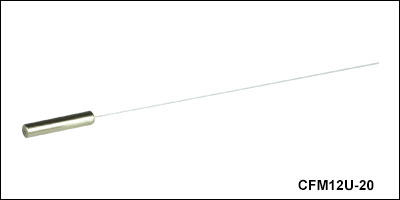

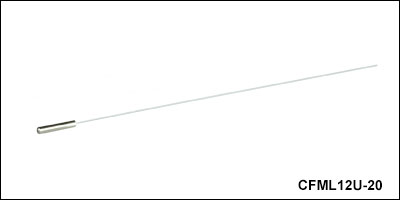

CFML12U-20

50 mm Uncleaved Fiber, Pack of 20

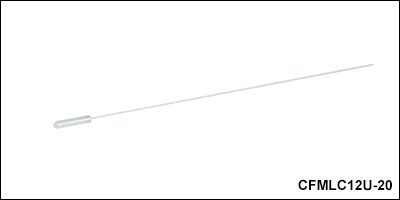

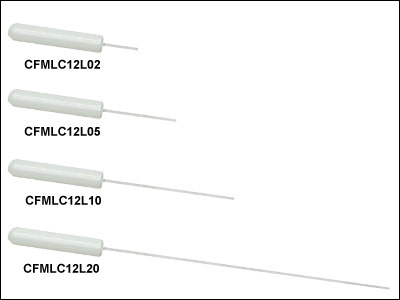

CFMLC12L02

2 mm Cleaved Fiber

Ferrule Ends

Ø2.5 mm

Ø1.25 mm

Stainless Steel

Polished Ceramic

Please Wait

Overview
Custom Cannula
Cannula Cleaving
Feedback
OG Selection Guide

Fiber Optic Cannula Selection Guide
Ø105 µm Core, 0.22 NA Fiber
Ø200 µm Core, 0.22 NA Fiber
Ø200 µm Core, 0.39 NA Fiber
Ø200 µm Core, 0.50 NA Fiber
Ø300 µm Core, 0.39 NA Fiber
Ø400 µm Core, 0.39 NA Fiber
Ø400 µm Core, 0.50 NA Fiber
Dual-Core Cannulae
Cannulae with Diffuser Tip

Cannula Fiber Specifications
Fiber Type	FT200EMT
Wavelength Range (Click for Plot)	400 - 2200 nm
Fiber Core Diameter	200 ± 5 µm
Fiber Outer Diameter	225 ± 5 μm
Numerical Aperture	0.39
Cleaved Length Tolerance	±0.5 mm

Click for Details
All Fiber Optic Cannulae and Optogenetics Patch Cables can be easily mated using an Interconnect or Mating Sleeve.

Features

Ø200 µm Core, 0.39 NA Fiber Optic Cannulae
Multiple Ferrule Options
- Ø1.25 mm (LC) or Ø2.5 mm (FC) Size
- Stainless Steel or Ceramic (Zirconia) Material
- 10.5 mm Long Ceramic LC Ferrule Improves Handling
Various Fiber Lengths (2 - 20 mm) for a Variety of Applications
Cleave 50 mm Long Scissor-Cut Cannula to Desired Length
Custom Versions Available (See Custom Cannula tab for Details)
Contact Tech Support for Discount on High-Volume Purchases
Select Cannula Available in Packs of 10

Thorlabs' Implantable Fiber Optic Cannulae deliver light from an LED or laser light source to optically sensitive cells within a specimen. The cannulae consists of a ferrule and a length of protruding optical fiber that is typically surgically implanted using stereotaxic guidance. After implanting, the ferrule remains exposed; this provides an interface with our line of Optogenetics Equipment (see the OG Selection Guide tab for a full listing).

The cannulae sold on this page use a Ø200 µm, 0.39 NA fiber (item # FT200EMT) with a variety of ferrule and length options. Cannulae with Ø1.25 mm (LC) ferrules are less invasive and lightweight, making them ideal for smaller specimens or placing multiple cannulae in close proximity. In contrast, Ø2.5 mm ferrules provide a more robust connection and cables are easier to handle and ideal for larger specimens. Stainless steel ferrules are easy to score for better adherence when implanted and fixated with glue, while ceramic ferrules are lighter for reduced stress on the specimen.

Cannulae are available with a flat cleave to a pre-determined length (2, 5, 10, or 20 mm). Uncleaved cannula with a 50 mm scissor-cut length can be cleaved by the user to any desired length using the procedure outlined on the Cleaving Procedure tab. An implant guide for the cannula sold on this page is also available below in packs of one or five.

Click to Enlarge
Multiple fiber NAs are available across our optogenetics product line; cannulae with a 0.39 NA are sold on this page.

Each cannula includes a protective cap that shields the ferrule end from dust and other hazards. Additional CAPF Fiber Caps are also sold separately. If the ferrule end becomes dirty from use, we offer a selection of inspection tools, as well as fiber optic cleaning products.

Numerical Aperture (NA)
For best performance, choose a patch cable and cannula with the same fiber core diameter and NA. Numerical Aperture (NA) defines the angle of the cone of light leaving the fiber tip at the end of the cannula and is a dimensionless quantity used by fiber manufacturers to specify the acceptance angle of an optical fiber. Cannulae with a lower NA provide a narrower cone of light at the tip, resulting in higher light intensity over a smaller area, while cannulae with a higher NA generate a wider cone of light that illuminates a larger area with lower intensity.

Mating Sleeve and Patch Cable Compatibility
The ferrule diameter of a patch cable and cannula is the key factor for physical compatibility with an interconnect and mating sleeve. Mixing stainless steel and ceramic ferrules should not introduce significant additional signal losses. Cannulae and patch cables using Ø1.25 mm (LC) ferrules can be connected using the ADAL1 mating sleeve or ADAL3 interconnect. Patch cables and cannulae using Ø2.5 mm (FC) ferrules are compatible with the ADAF1 mating sleeve and ADAF2 interconnect.

Custom Cannulae
Thorlabs also manufactures custom fiber optic cannulae. We can provide different fiber and/or ferrule types as well as different fiber lengths. Please see the Custom Cannula tab for details.

Optogenetics Product Family for In Vivo Applications

Thorlabs offers a wide variety of products designed to support in vivo optogenetics applications. Please visit the OG Selection Guide tab above to see a full listing of available products for different applications.

Optogenetics System Schematic

Related Optogenetics Products
Light Sources	Patch Cables (Ø200 µm Core, 0.39 NA)	Mating	Cannulae (Ø200 µm Core, 0.39 NA)	Accessories
Fiber-Coupled LEDs MM Laser, 473 nm	Standard Rotary Joint Dual Core Bifurcated Y-Cables 1-to-7 Fiber Bundles	Interconnects Mating Sleeves	Standard Dual Core Diffuser Tip	Implant Guides Cannula Holders

Custom Fiber Optic Cannula

Thorlabs offers custom cannulae with the following options. Place a quote request through the following form to receive a quote for your custom cannula order.

Custom Cannula Worksheet:

Fiber Type:
Ferrule Size:	Ø2.5 mm (FC) \| Ø1.25 mm (LC) (Custom length ferrules are also available. Contact Tech Support for details.)
Ferrule Material:	Stainless Steel \| Ceramic (Zirconia)
Fiber End:	Flat Cleave (tolerance of ± 0.5 mm) \| Scissor Cut
*Fiber Length (mm):**	Length is specified as in the diagram above, with tolerance as noted.
*Quantity:**
Comments:

Customer Information:

Please Login if you have an account with us.

*First Name:**
*Last Name:**
Company:
*Address:**
*Country:**
*Zip/Postal Code:**
County:
*City:**
*State/Province:**
*Phone:**
Fax:
*Email:**

Characters are Case-Sensitive

Click to Enlarge
Figure 2: Pulling the Fiber with the BFG1 Bare Fiber Gripper

Click to Enlarge
Figure 1: Scribing the Fiber with the S90R Fiber Scribe

Click to Enlarge
Figure 3: Cleaved Fiber After Pulling

Click to Enlarge
Figure 4: Cleaved Fiber End, as Viewed Through the JEL10 Eye Loupe

Fiber Cleaving

A cleave, or precision cut, is used to ensure proper light propagation out of the fiber tip. Thorlabs' uncleaved cannula must be cleaved before use; a cleaved cannula can be cleaved again if a shorter fiber length is desired. We recommend the following procedure for cleaving the fiber end.

Required Materials

Uncleaved Fiber Optic Cannula
S90R Fiber Scribe
BFG1 Bare Fiber Gripper
KW32 Kimwipes™ Lint-Free Wipes
Isopropyl Alcohol
JEL10 Eye Loupe, EYL10X Premium Eye Loupe, or Microscope
FTDU Fiber Optic Disposal Unit (Recommended)

Cleaving Procedure

Clean the fiber end of the cannula using a lint-free wipe and isopropyl alcohol. Do not use acetone, as this will damage the TECS cladding on the exposed fiber.
Measure the desired length of fiber from the end of the ferrule. Mark this length on the fiber with a marker.
Place the cannula on a hard surface and secure the fiber end with a finger or tape, as shown in Figure 1.
Hold the cleaving tool perpendicular to the fiber and gently score the fiber as shown in Figure 1 to the right. Do not apply excessive pressure. The fiber should not break off at this point.
This step is critical in obtaining a good cleave. If the scribe is made too hard, the fiber will break instead of cleaving. If the scribe is too light, the fiber will not cleave.
Hold the cannula in one hand, and grip the fiber end with a bare fiber gripper in the other end as shown in Figure 2. Pull the fiber straight back until the fiber cleaves as shown in Figure 3. Dispose of the scrap fiber end in the FTDU or any medical or fiber sharps container.
If the fiber does not break with a moderate amount of tension, repeat steps 4-5 above applying slightly more pressure when scoring. Inspect the cleave using an eye loupe or microscope.

A good cleave will be flat across the fiber and perpendicular to the optic axis. There should be no ‘tag’ (i.e., protrusion) from the edge of the fiber. The region where the initial scribe was made may be visible. It should be less than 5% of the core diameter. Be patient as this process takes a little practice. Please be aware that it will be more difficult to achieve a high-quality cleave in large-core-diameter fibers compared to thinner fibers. A view of a properly cleaved fiber end as seen through a Thorlabs' JEL10 eye loupe is shown in Figure 4.

Click Here for a PowerPoint Illustrating This Procedure

Thorlabs also offers a full fiber connectorization manual, which covers fiber termination and connectorization, as well as bare fiber cleaving. It can be downloaded for free here, or a paper copy can be purchased here.
